Kvant Architect W500B

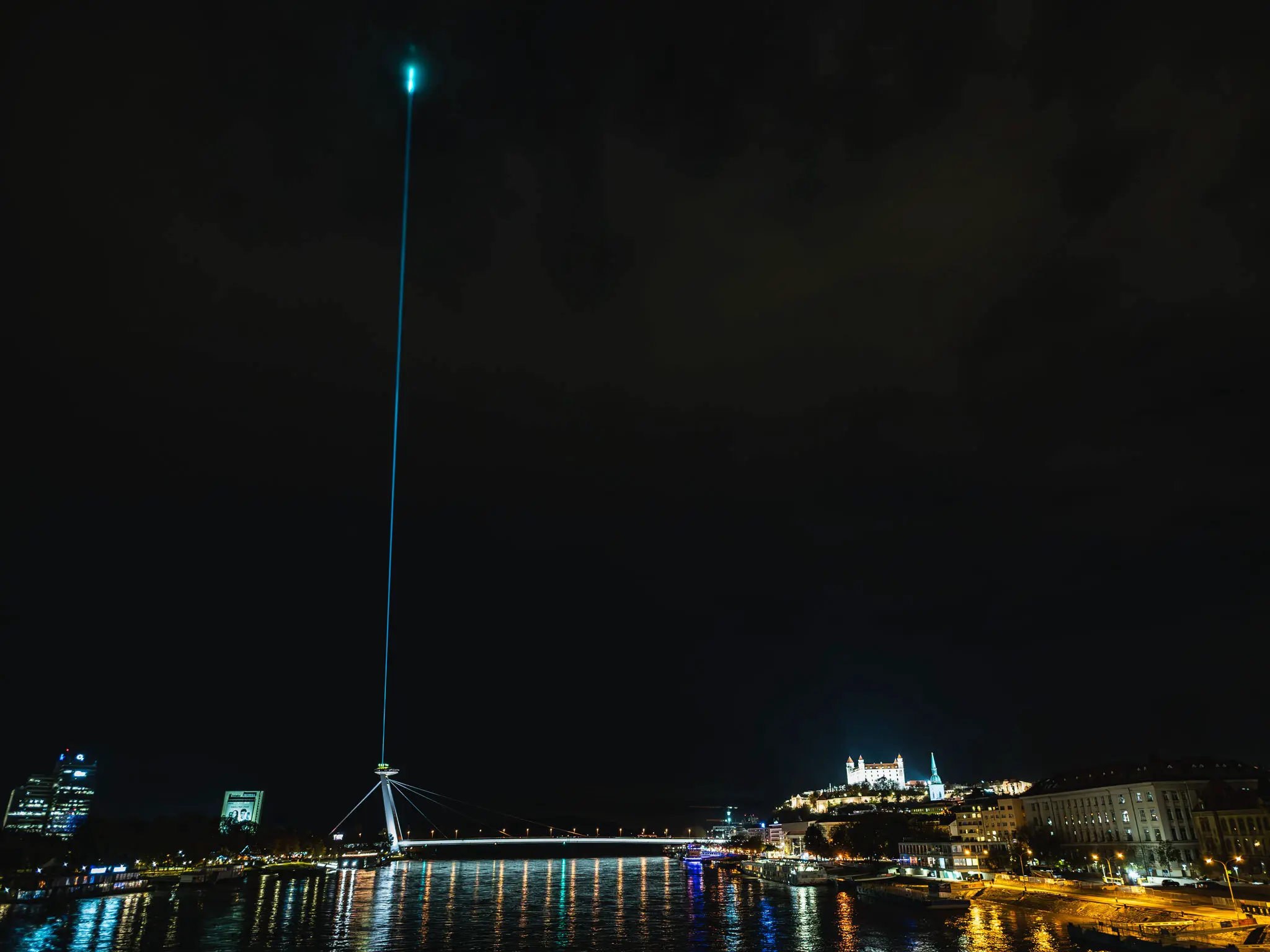

The second generation of Architect high-power static-beam lasers, also known as sky lasers or landmark lasers, is engineered to meet the rising global demand for ultra-bright laser systems. These lasers are ideal for accentuating prominent landmarks, structures, and architectural features.
The Architect systems project beams that captivate attention from miles away, enhancing the grandeur of natural and man-made wonders. This transforms already impressive sights into unique, visually striking, and unforgettable attractions.
For added versatility, the optional DMX-controlled heavy-duty platform enables 350-degree pan and 126-degree tilt functionality. This allows the entire Architect fixture to move and scan the beam dynamically across the sky, offering a truly remarkable visual experience.
Specifications for United States Market
- Source | Type: Semiconductor laser diode | Full-color RGB static-beam laser projector / Sky laser
- Suitability: Architectural outdoor installations | Landmark and sky illumination
- System Control: FB4 [ArtNet, DMX] / Manual via supplied remote control box | Dimming 100–0%
- Compliance: FDA/CDRH-compliant for U.S. laser safety standards
- Weight [lbs]: Laser projector: 176 lbs, Chiller: 101 lbs
- Dimensions [WxHxD, inches]: Laser projector: 25.2 x 22.6 x 26.9 inches, Chiller: 27 x 15.7 x 19 inches
- Guaranteed Optical Output: 486 watts
- Installed Modules [W]: Red: 152 W | Green: 188 W | Blue: 146 W
- Wavelengths [nm]: Red: 637 nm | Green: 525 nm | Blue: 465 nm
- Beam Size [inches]: 15.7 x 15.7 inches
- Beam Divergence [mrad]: 3.4 [full angle, averaged value]
- X-Y Scanners: Single beam output | Pan & tilt possible with the optional DMX platform
- Power Requirements: Laser projector: 100–240 VAC | 50–60 Hz | Neutrik powerCON TRUE1, Chiller: 200–230 VAC | 50–60 Hz
- Max Power Consumption: Laser projector: < 2,000 W, Chiller: < 1,600 W
- Operating Temperature [°F]: 41–104°F [full power output at 41–95°F]
Included in the Set:
- Chiller
- 33 ft water supply hoses
- 2x heavy-duty flight cases
- 33 ft AC power cable
- 33 ft control signal cable
- 0–5 Volt RGB controller
- E-STOP remote with 33 ft 3-pin XLR cable
- Set of 2 safety keys
- USB memory stick with user manual
- QC certificate
Hardware Features:
- Laser safety features: Emission warning beacon, emission delay, magnetic interlock, electronic shutter
- Emergency STOP system with keyed remote and manual RESTART button
Additional Specifications:
- Luminous Flux: 130,200 lumens
- Coolant: Water + 15% glycol, 1.6–2.6 gal/min at 68°F
- Hose Fittings: CEJN series 567
This updated specification aligns with U.S. standards while maintaining the exceptional quality and performance of the Architect series laser systems.
